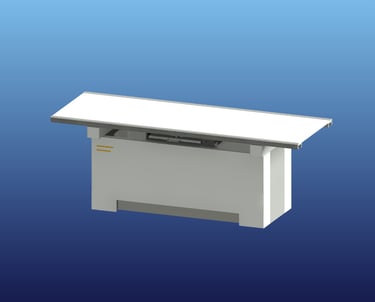

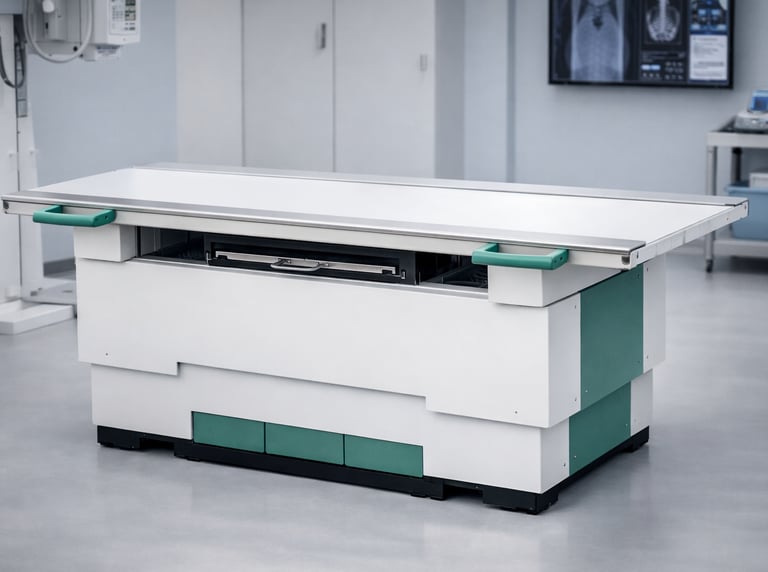

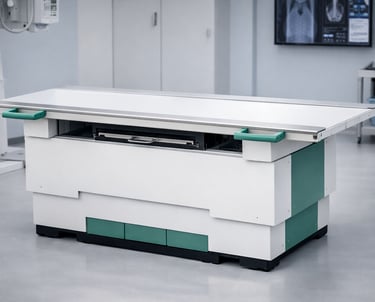

4 WAYFLOATING TOP TABLE

Model: iFLOAT 4D

Smooth Precision. Strong Performance.

The iFLOAT-4D, 4-Way Floating Top Table is a heavy-duty, high-performance radiography table designed for precision positioning and operator comfort. Its compact and durable structure ensures stable patient support while allowing effortless tabletop movement in four directions for accurate imaging alignment.

With a load capacity of up to 220 kg and a total weight below 140 kg, this table offers exceptional strength without compromising on maneuverability. The silent and smooth motion system enhances workflow efficiency and patient experience in every examination.

Built to adapt, the table offers customizable dimensions to suit different system configurations and room layouts. Combining reliability, durability, and market-competitive performance, the BRYNO 4-Way Table delivers outstanding value for modern radiography setups.

Technical Highlights:

• Dimensions: L 1910 mm × W 810 mm × H 690 mm (customizable on request)

• Load Capacity: Up to 220 kg

• Table Weight: Below 140 kg

• Electromagnetic Loacksfor all movement

• 4-way floating movement with silent operation

• Compact, heavy-duty, and easy to position

• Designed for stability, precision, and long-term use

• Highly cost-effective and performance-driven

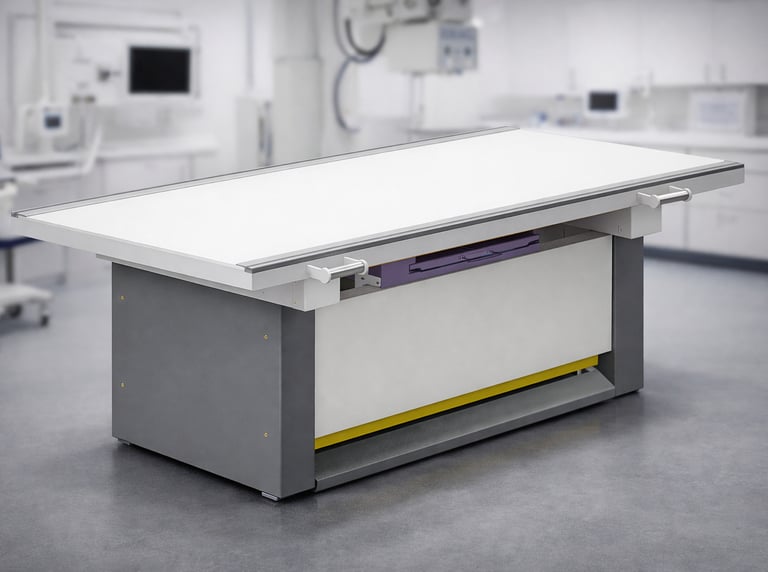

iFLOAT-6D

6-Way Floating Top X-Ray Table

A precision-engineered patient table designed for smooth, accurate positioning in modern radiography systems. Built on a robust industrial chassis with actuator-driven height adjustment, it delivers effortless multi-axis movement with exceptional stability.

Key Highlights

• 6-way floating motion for precise positioning

• Longitudinal travel: ± 500 mm

• Transverse travel: ± 225 mm

• Vertical lift: 300 mm (actuator-driven)

• Typical dimensions: L 2000–2200 mm | W 700–800 mm | H 600–900 mm

• Heavy-duty, torsion-free structure for continuous clinical use

• Radiolucent tabletop optimized for DR/CR imaging

• Smooth, low-force floating mechanism

• All movements, dimensions, and finishes customizable as per OEM requirements

Engineered for reliability, accuracy, and seamless OEM integration in high-performance X-ray systems.

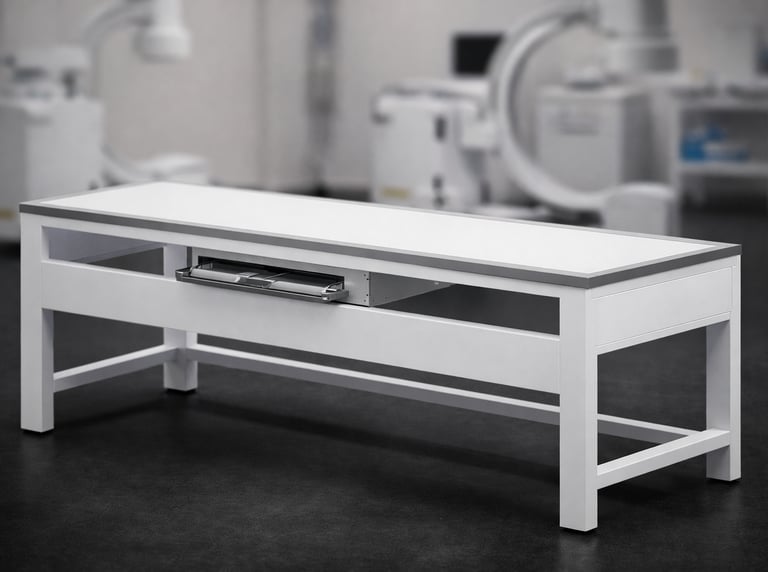

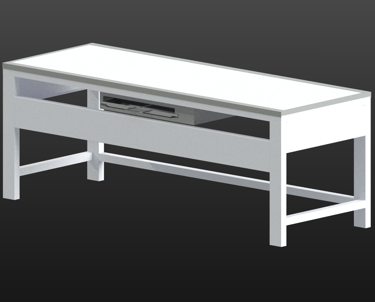

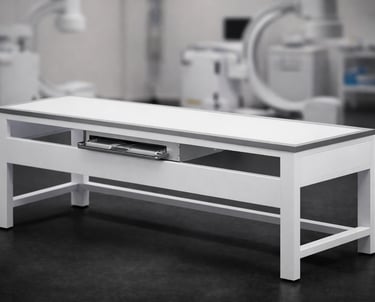

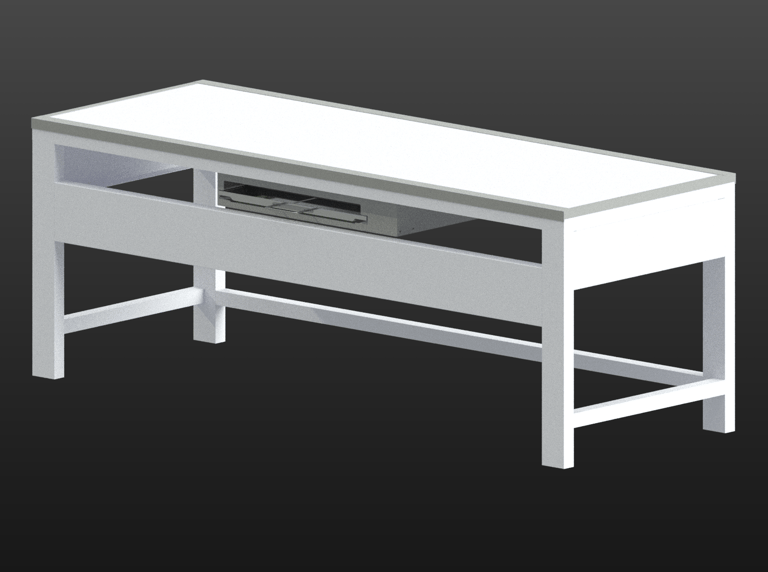

HORIZONTAL BUCKY TABLE

Strength, Stability, and Smart Design

The Horizontal Bucky Table is a heavy-duty, ergonomically engineered radiography table built for superior strength and long-term reliability. Designed to handle demanding clinical use, it offers an impressive load capacity of over 300 kg, ensuring stable support for all types of patients and imaging procedures.

Its ready-to-install, plug-and-play design simplifies setup, reducing installation time and ensuring quick integration into any radiography system. The ergonomic structure provides excellent operator access and patient comfort, while the customizable dimensions allow seamless adaptability to diverse room layouts and system configurations.

Engineered with market-competitive specifications, this table combines durability, precision, and ease of use — delivering exceptional performance and lasting value in every diagnostic environment.

Key Highlights:

• Heavy-duty construction with load capacity above 300 kg

• Ergonomic, easy-to-use design for smooth workflow

• Customizable dimensions to fit various system requirements

• Ready-to-install plug-and-play setup

• Stable, reliable, and cost-effective solution for radiography systems
